Lowdoller Motorsports TH400 Shift Position Sensor Bracket

Part Number: 50023

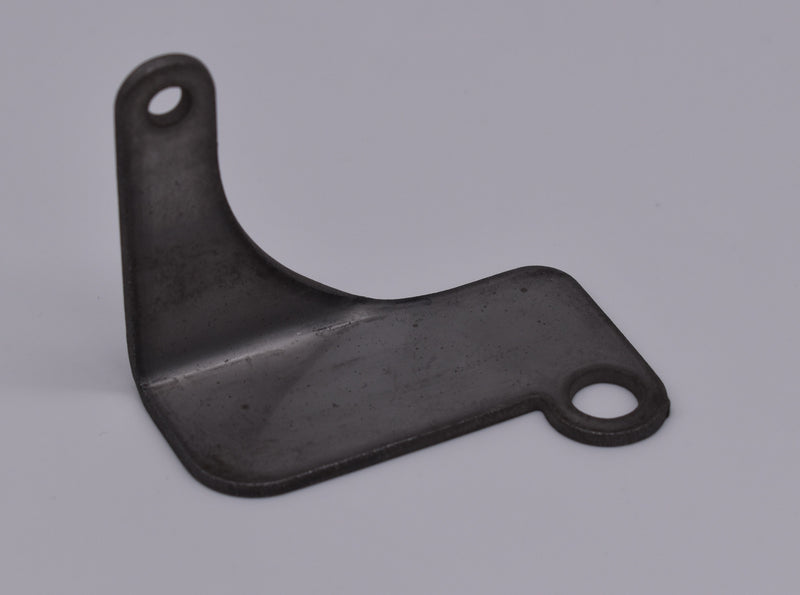

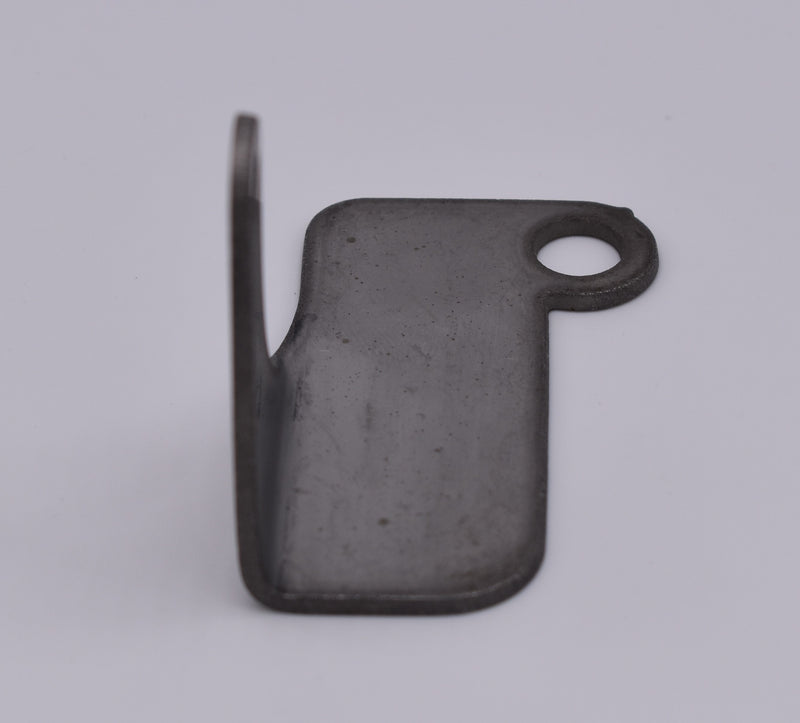

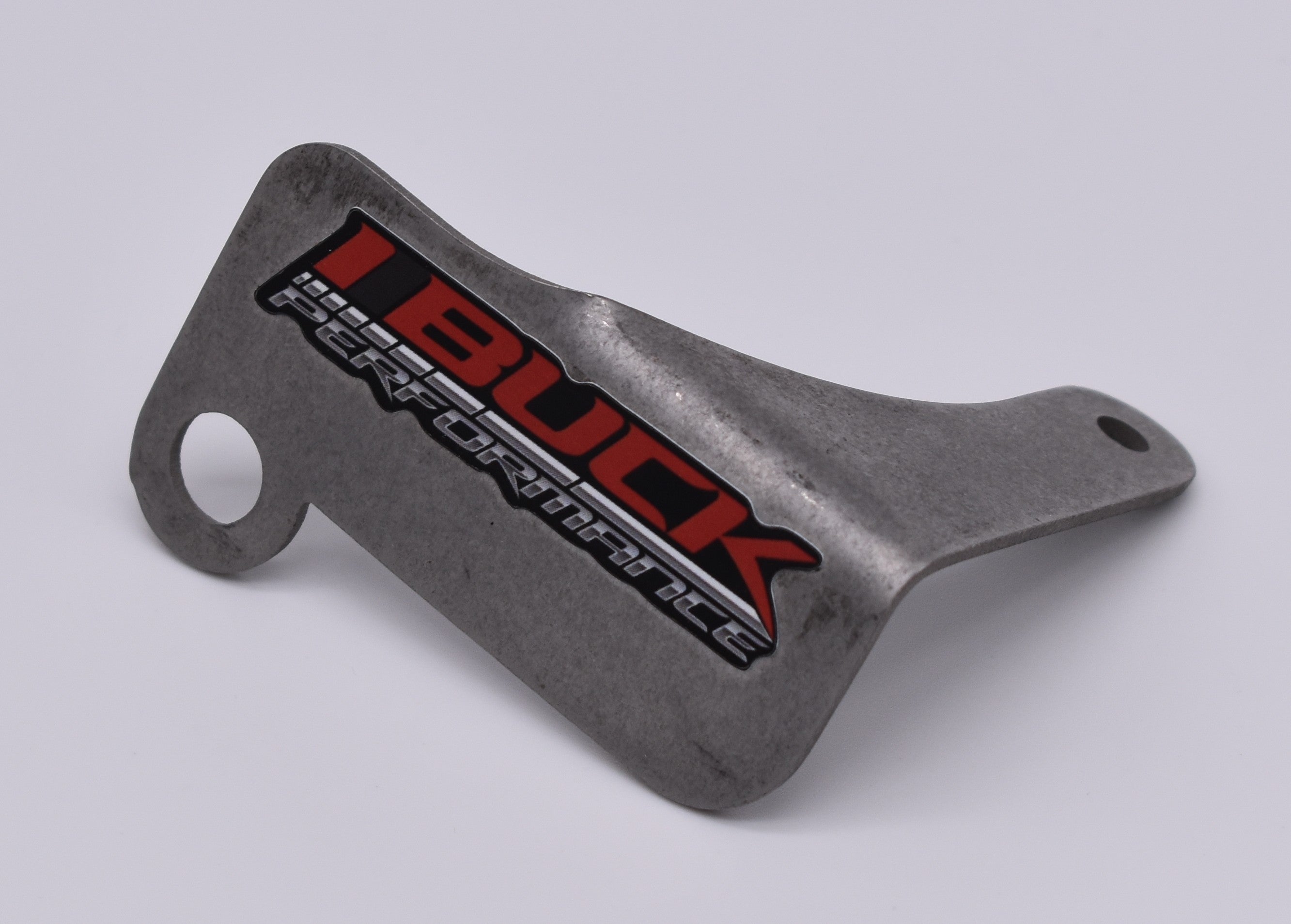

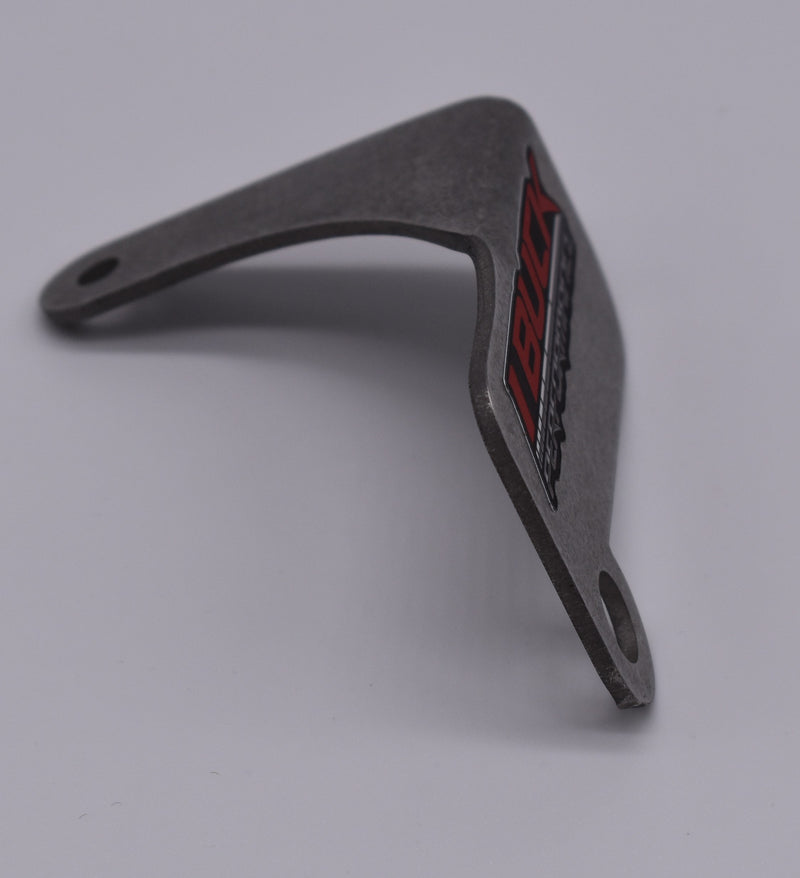

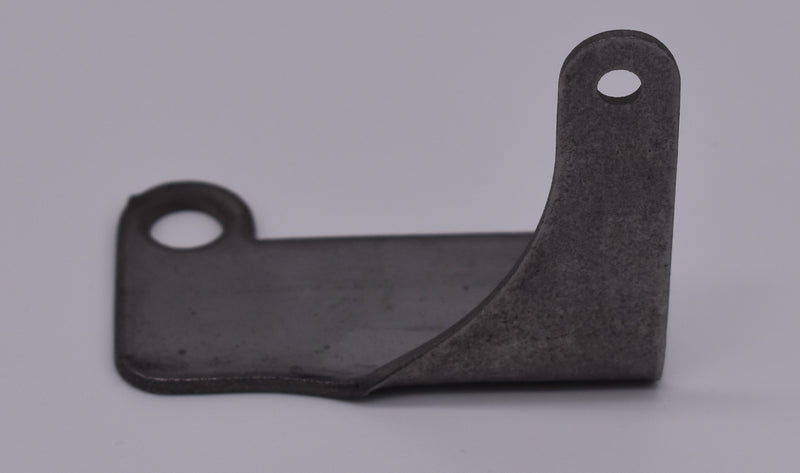

Securely mount your transmission shift-position sensor with the Lowdoller Motorsports Shift Position Sensor Bracket, designed specifically for TH400 transmission applications.

Manufactured from durable 316 stainless steel, this bracket provides a rigid and corrosion-resistant mounting solution for race cars using electronic shift-position monitoring. Correct sensor positioning is essential for producing repeatable gear-position data, helping the ECU, data logger or transmission control system accurately identify the selected transmission position.

The purpose-built design helps reduce the fabrication and setup time normally required when adding a shift-position sensor to a TH400-equipped vehicle. Its stainless-steel construction makes it well suited to demanding drag racing and motorsport environments where vibration, heat and fluid exposure are common.

While designed around the TH400 transmission, the bracket may also suit other transmissions or custom applications where the mounting arrangement and sensor geometry are compatible.

Features & Benefits

• Specifically designed for TH400 transmission applications
• Provides a secure shift-position sensor mounting point
• Manufactured from durable 316 stainless steel
• Excellent corrosion resistance
• Maintains consistent sensor alignment
• Helps produce accurate and repeatable gear-position data
• Reduces custom fabrication and installation time
• Suitable for demanding drag racing environments
• May suit other transmissions with compatible mounting geometry
• Ideal for ECU and data-logging installations

Technical Specifications

• Product Type: Shift Position Sensor Bracket
• Material: 316 Stainless Steel
• Primary Application: GM TH400 Transmission
• Installation Type: Transmission-Mounted Sensor Bracket
• Finish: Natural Stainless Steel
• Sensor Included: No

What’s Included

• 1 × Lowdoller Motorsports shift-position sensor bracket

Applications

• GM TH400 transmissions
• Drag racing transmission data acquisition
• Electronic gear-position monitoring
• ECU and data-logger installations
• Race vehicles requiring transmission-position data
• Custom transmission applications with compatible mounting geometry

Important Application Notes

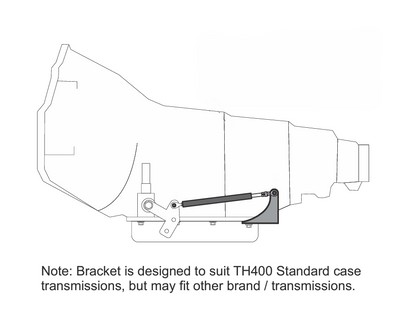

This bracket is specifically designed for TH400 transmissions but may fit other transmission applications. Confirm the mounting points, selector-shaft arrangement and required sensor positioning before installation on any transmission other than a TH400.

The shift-position sensor, wiring and associated electronic components are sold separately unless otherwise stated.

Why Use a Shift Position Sensor?

Accurate gear-position data allows racers and tuners to review transmission operation alongside engine speed, driveshaft speed, boost pressure and other vehicle data.

This information can assist with identifying shift timing, confirming the selected gear and diagnosing inconsistencies within the transmission or shifting system. A rigid, correctly positioned bracket is critical for ensuring that the sensor produces dependable information from pass to pass.

Why Choose Lowdoller Motorsports?

Lowdoller Motorsports develops practical sensor mounting and data-acquisition components for racers who need reliable information in demanding competition environments. Its products are designed to simplify installation while supporting accurate and repeatable vehicle data.
