P1 | TOYOTA 2JZ HEAD STUD KIT, OEM BLOCKS, DART W/11MM THREADS, 12PT NUTS, S220 SERIES, BLACK OXIDE FINISH

$537.00
By P1

P1 – Toyota 2JZ Head Stud Kit
For OEM & Dart Blocks | 11mm Threads | 12-Point Nuts | S220 Series | Black Oxide Finish
PN# K020-H01S

The P1 Toyota 2JZ Head Stud Kit (PN# K020-H01S) is engineered for extreme-performance 2JZ engines requiring maximum clamping strength, thermal stability, and long-term reliability. Designed to suit both OEM Toyota 2JZ blocks and Dart 2JZ blocks, this kit utilises 11mm thread geometry for superior block engagement—critical for high-boost, high-cylinder-pressure applications.

Each stud is manufactured from P1’s premium S220 Series alloy, delivering an outstanding 220,000 psi ultimate tensile strength. This advanced steel—sourced exclusively from USA-based mills—offers exceptional heat resistance and stability under the intense thermal cycling common in turbocharged and competition-grade 2JZ engines. The S220 material also enables significantly higher clamp load compared to competing fasteners, improving head-to-block sealing and reducing the risk of head lift under extreme boost levels.

The durable black oxide finish enhances corrosion resistance while maintaining a clean, professional appearance. Precision-machined 12-point nuts and hardened washers ensure balanced clamping, smooth torque application, and long-term head gasket integrity.

Whether the build is focused on drag racing, roll racing, high-power street performance, or full motorsport use, this kit delivers the fastening strength required to support substantial power levels with confidence.

Key Features:

  • Compatible with Toyota 2JZ OEM and Dart 2JZ blocks

  • Strong 11mm thread configuration for superior block engagement

  • Manufactured from S220 Series alloy with 220,000 psi ultimate tensile strength

  • USA-sourced steel for unmatched stability and heat resistance

  • Higher clamp load than comparable aftermarket hardware

  • Designed to combat head lift in high-boost, high-cylinder-pressure environments

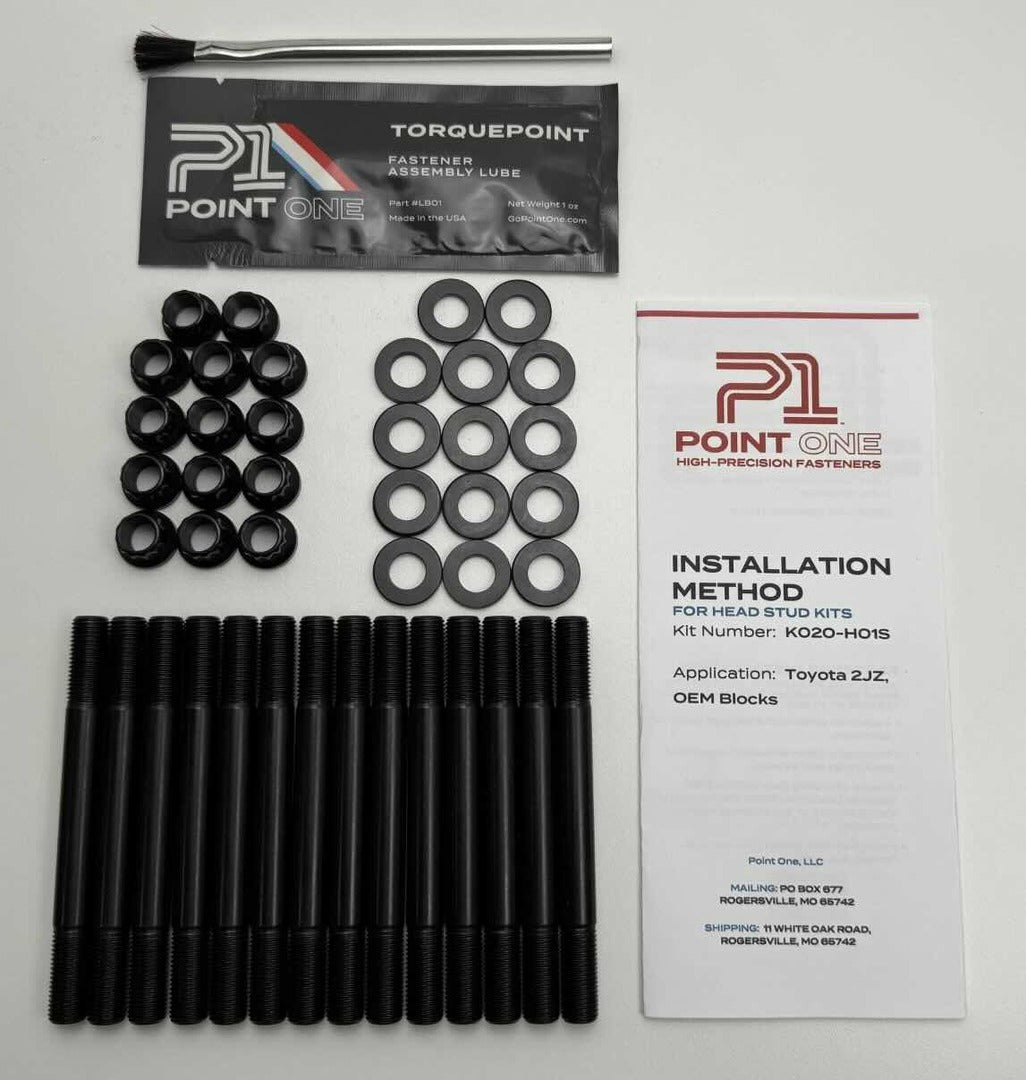

  • Includes 12-point nuts and hardened washers

  • Black oxide finish for corrosion protection and clean installation

  • Ideal for heavy boost, large-frame turbo setups, and competition builds

Built for extreme power—P1’s S220 head stud kit provides the clamping force your 2JZ needs to stay sealed, stable, and ready for maximum performance.
