LDM | MAG-HALL-3/4-NO-NP CRANKSHAFT SIGNAL SENSOR PN: 1523416

Lowdoller Motorsports 3/4"-16 Magnetic Hall-Effect Crankshaft Signal Sensor

Part Number: 1523416
Model: LDM-MAG-HALL-3/4-NO-NP

Achieve accurate and reliable crankshaft position monitoring with the Lowdoller Motorsports Magnetic Hall-Effect Crankshaft Signal Sensor. Designed for demanding motorsport and data-acquisition applications, this sensor provides a clean, consistent crankshaft signal to compatible ECUs and data-logging systems.

Unlike conventional Hall-effect sensors triggered by ferrous steel targets, the LDM-MAG-HALL sensor is specifically designed to detect magnets. Its wide detection range, high switching frequency and normally open output make it suitable for accurately monitoring crankshaft speed and position in high-RPM race applications.

The sensor features a durable 3/4"-16 threaded, nickel-plated body with a flush-mount sensing face. A built-in LED provides immediate visual confirmation during installation and setup, making it easier to correctly position the sensor relative to the magnetic trigger.

With an IP67-rated housing, integrated short-circuit and reverse-polarity protection and a broad 10–30V DC operating range, the LDM crankshaft sensor is built to perform reliably in harsh motorsport environments.

Features & Benefits

• Designed for crankshaft speed and position sensing

• Magnetic Hall-effect operation

• Triggered by magnets rather than ferrous material

• Normally open signal output

• Outputs a 0V signal to the ECU or data logger

• Built-in LED simplifies sensor positioning and setup

• Wide 0.1–10mm detection range

• Maximum switching frequency of 1000Hz

• Durable nickel-plated construction

• Flush-mount sensing face

• Integrated short-circuit protection

• Integrated reverse-polarity protection

• IP67-rated against dust and water ingress

• Suitable for demanding motorsport environments

Technical Specifications

• Sensor Type: Magnetic Hall-Effect

• Thread/Body Size: 3/4"-16

• Trigger Type: Magnet

• Signal Configuration: Normally Open

• Signal Output: 0V

• Detection Range: 0.1–10mm

• Maximum Switching Frequency: 1000Hz

• Supply Voltage: 10–30V DC

• Operating Temperature: -13°F to 176°F

• Protection Rating: IP67

• Body Finish: Nickel Plated

• Mounting Style: Flush Mount

Wiring

• Brown: Power Supply – 10–30V DC

• Blue: Clean Ground

• Black: Signal Wire – Outputs 0V to the ECU or data logger

What’s Included

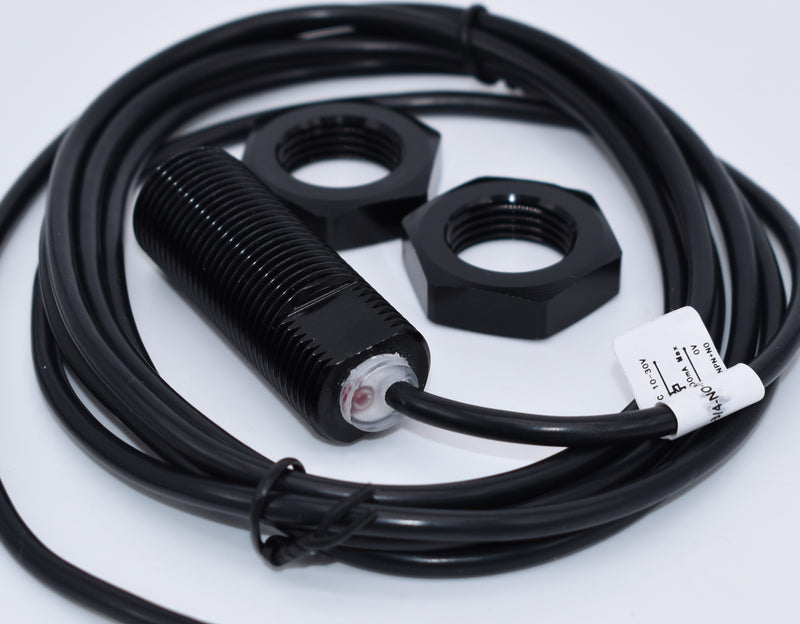

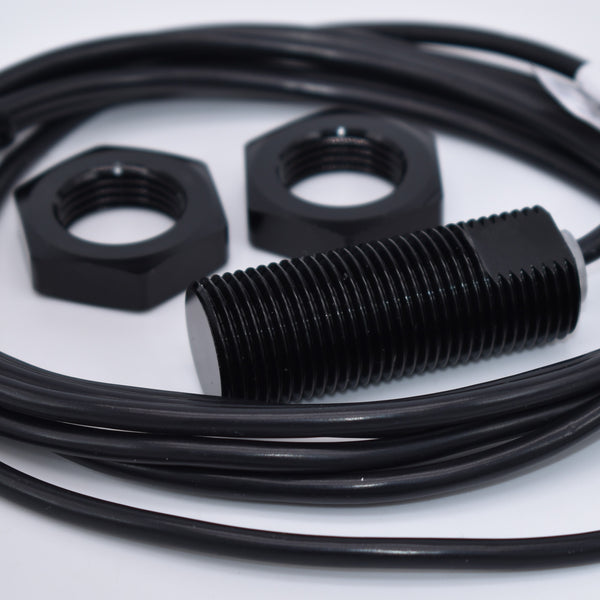

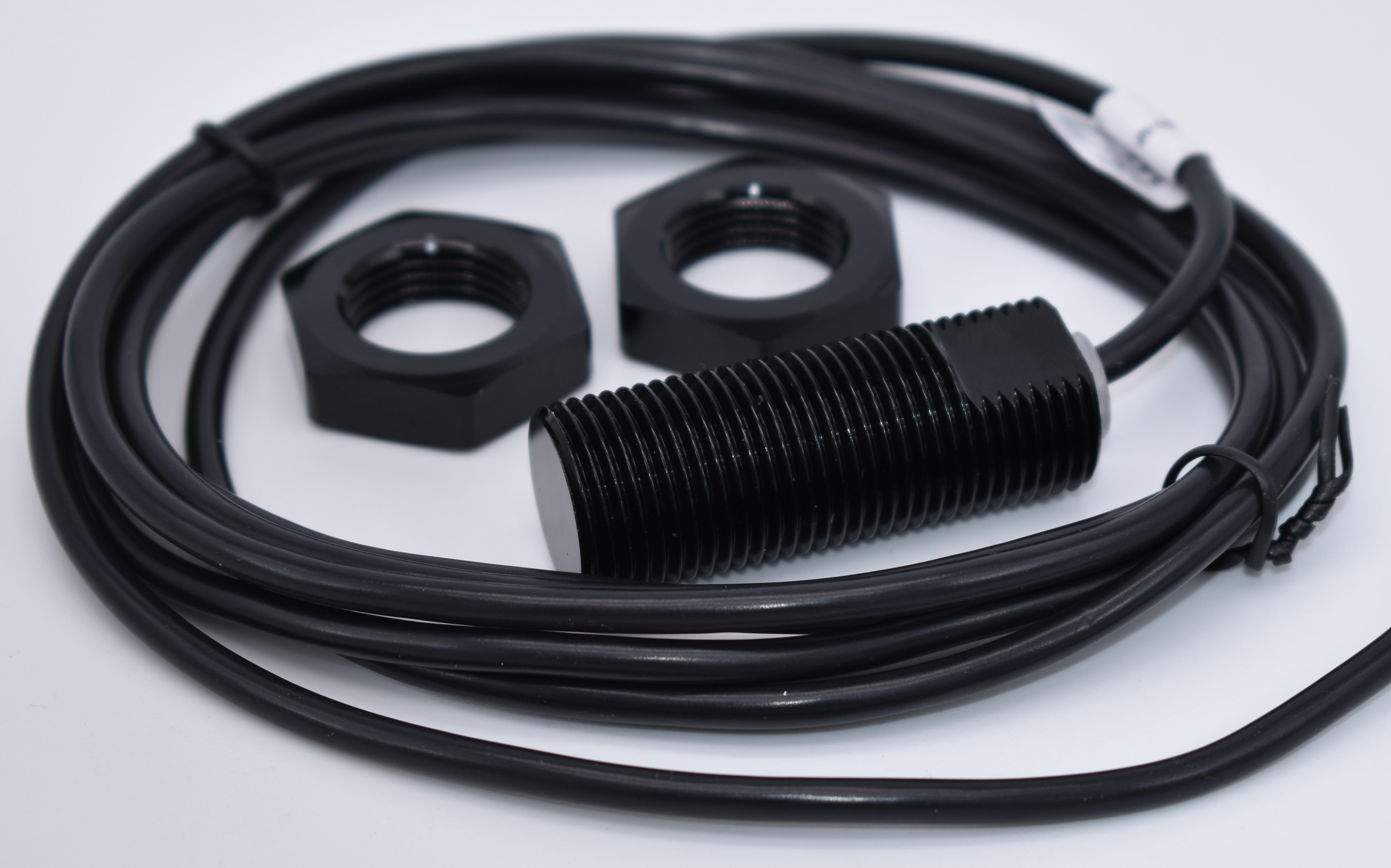

• Lowdoller Motorsports 3/4"-16 magnetic Hall-effect crankshaft signal sensor

• Integrated three-wire sensor lead

Applications

• Crankshaft speed monitoring

• Crankshaft position sensing

• Engine RPM data acquisition

• Motorsport ECU installations

• Race-car data-logging systems

• Custom magnetic trigger-wheel applications

Important Installation Note

This sensor is triggered by magnets and not conventional ferrous-steel trigger teeth. Confirm that the crankshaft trigger system uses suitable magnetic targets and that the receiving ECU or data logger is compatible with a normally open, ground-switching 0V signal.

Why Choose Lowdoller Motorsports Sensors?

Lowdoller Motorsports sensors are developed for racers and performance enthusiasts who require accurate, dependable data without unnecessary complexity. Built for motorsport conditions, the LDM magnetic Hall-effect sensor provides the consistent crankshaft signal needed for effective engine control, diagnostics and performance analysis.

Why Buy From Prime Speedworks

Prime Speedworks supplies motorsport sensors and data-acquisition components backed by genuine racing experience and practical technical support. Whether you are building a new crank-trigger system or upgrading an unreliable existing sensor, we can help ensure the sensor, trigger arrangement and data system work together correctly.
