HPT | F5 98103 Turbocharger — 98mm Compressor / 103mm Turbine

The HPT F5 98103 Turbocharger is a serious large-frame turbo option for high-output engine combinations where airflow, turbine control and durability matter. With a 98mm compressor wheel and 103mm turbine wheel, the F5 98103 sits in the kind of turbo category suited to big-power V8, 2JZ, Barra, RB, billet block and high-capacity turbo applications.

HPT lists the F5 98103 with a 2618 forged compressor wheel, air-cooled full complement ball bearing design, aluminium bearing housing with integrated backing plate, stainless steel turbine housing options, speed sensor provision and a pre-installed Turbosmart oil feed filter. That combination makes it a strong choice for race cars and serious street/strip builds where response, durability and serviceability all matter.

The F5 98103 is available with multiple stainless turbine housing options, including

T6 inlet / V-band discharge housings in 1.12 A/R, 1.24 A/R and 1.40 A/R, plus
V-band inlet / V-band discharge housings in 1.15 A/R and 1.28 A/R. That gives engine builders and tuners room to match the turbo to the intended engine size, boost target, exhaust energy, converter/manual setup and racing style.

For Prime Speedworks customers, this is the kind of turbo that belongs in a properly planned package — not just bolted on because the number sounds tough. Correct turbine housing selection, wastegate sizing, manifold design, fuel system, ECU strategy, intercooler sizing and oil feed/drain setup all need to be considered if the goal is a reliable, repeatable high-horsepower combination.

Key features

• HPT F5 series large-frame turbocharger
• 98mm compressor wheel
• 103mm turbine wheel
• 2618 forged compressor wheel
• Full complement ball bearing centre section
• Air-cooled design
• Aluminium bearing housing with integrated backing plate
• Stainless steel turbine housing options
• Speed sensor provision
• Pre-installed Turbosmart oil feed filter
• Available with T6 inlet or V-band inlet turbine housing options
• Built for serious drag, roll-racing, circuit and high-horsepower street/strip turbo combinations
• Racing use only / not legal for road use as noted by vendor

Technical specifications

Turbine housing options

Application / fitment notes

The HPT F5 98103 is best suited to serious high-output turbo engine combinations where the supporting package is already planned around large-frame airflow. It may suit applications such as:

• Big-power LS / LT V8 builds
• Toyota 2JZ race builds
• Ford Barra race builds
• Nissan RB high-output builds
• Billet block and aftermarket block combinations
• Drag racing, roll racing, dyno competition and dedicated motorsport use

Before ordering, confirm:

• Target horsepower and boost pressure
• Engine displacement and RPM range
• Fuel type
• Manifold flange type
• Turbine housing A/R
• Wastegate size and control strategy
• Intercooler and charge pipe sizing
• Oil feed and oil drain layout
• Speed sensor requirement
• Converter or gearbox setup
• Available engine bay space

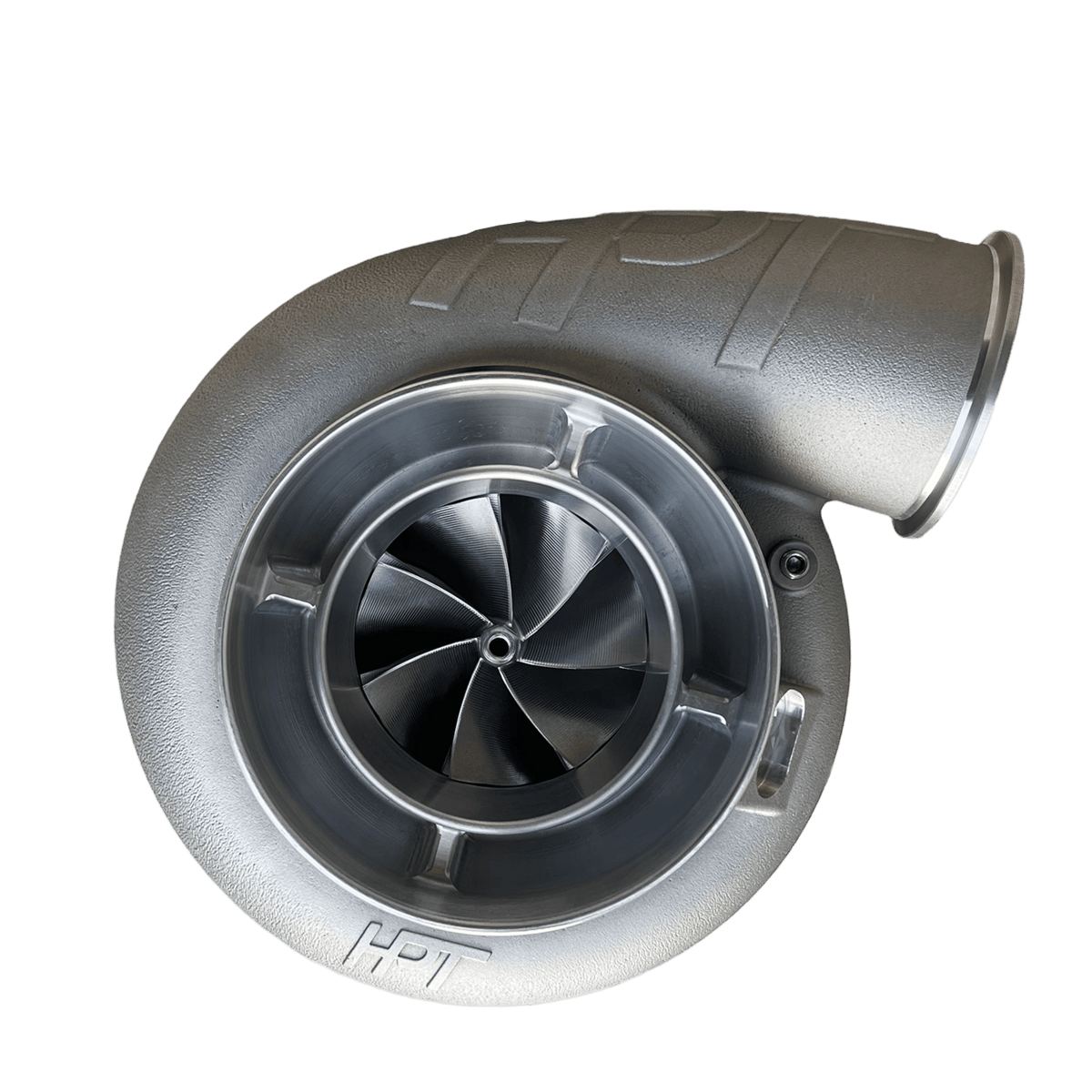

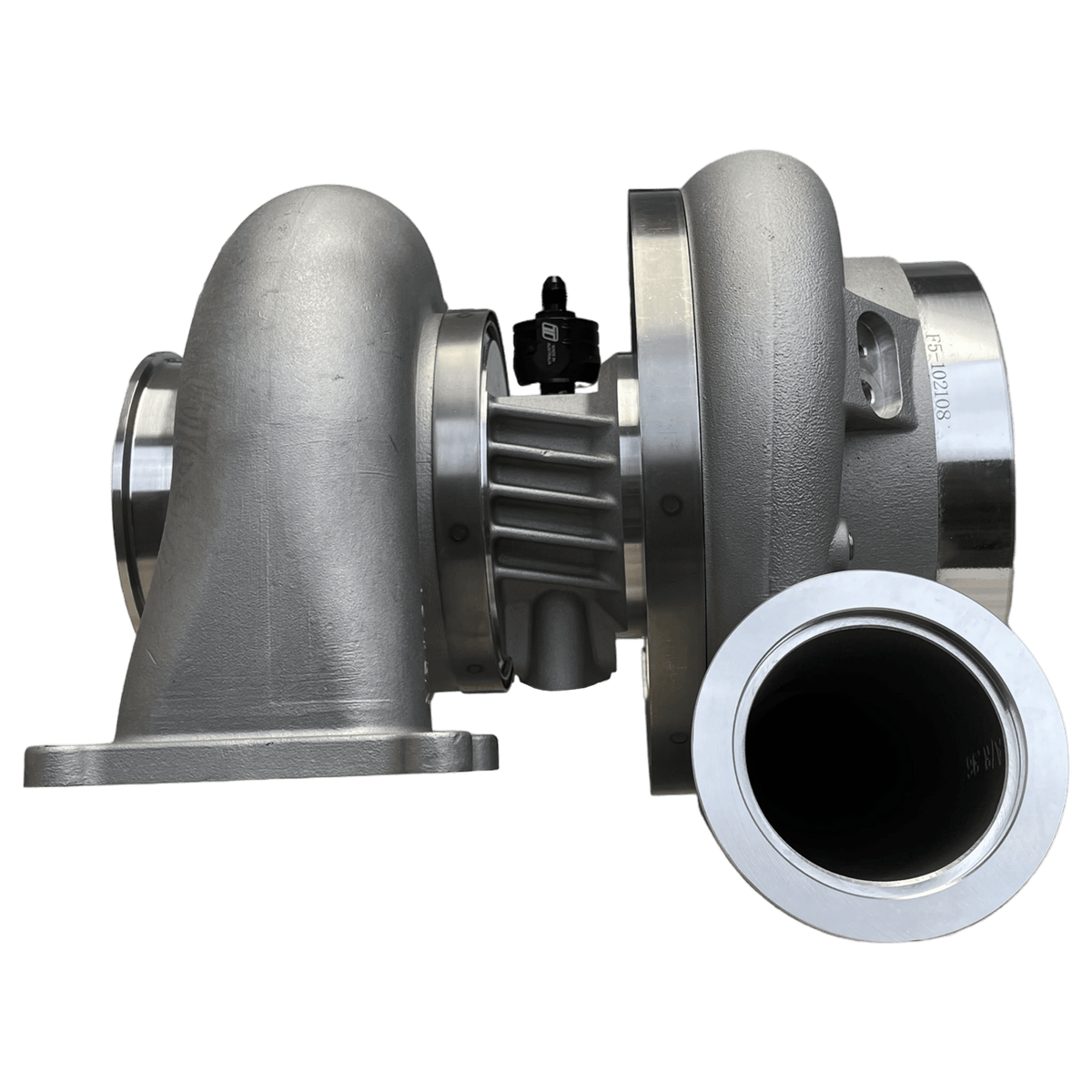

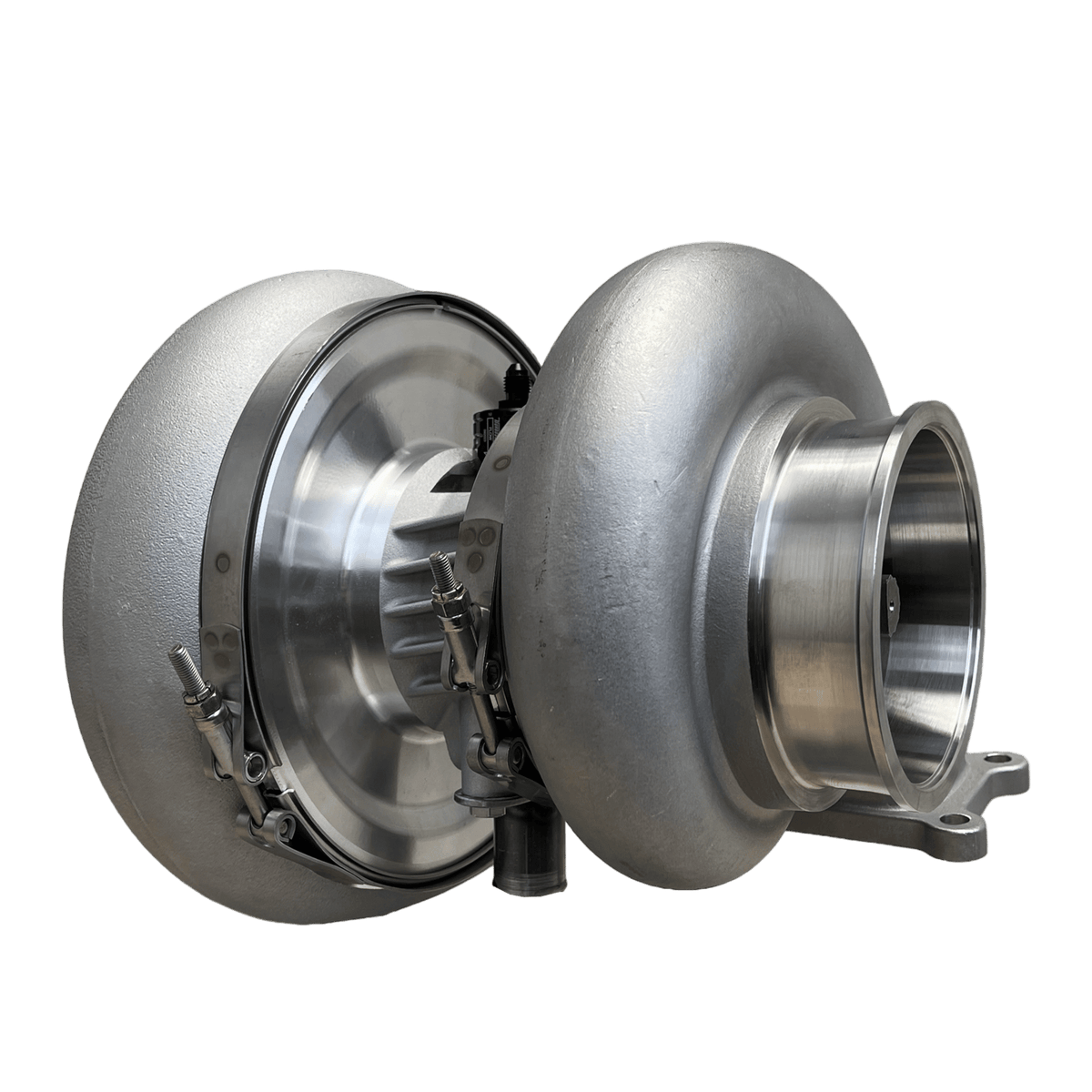

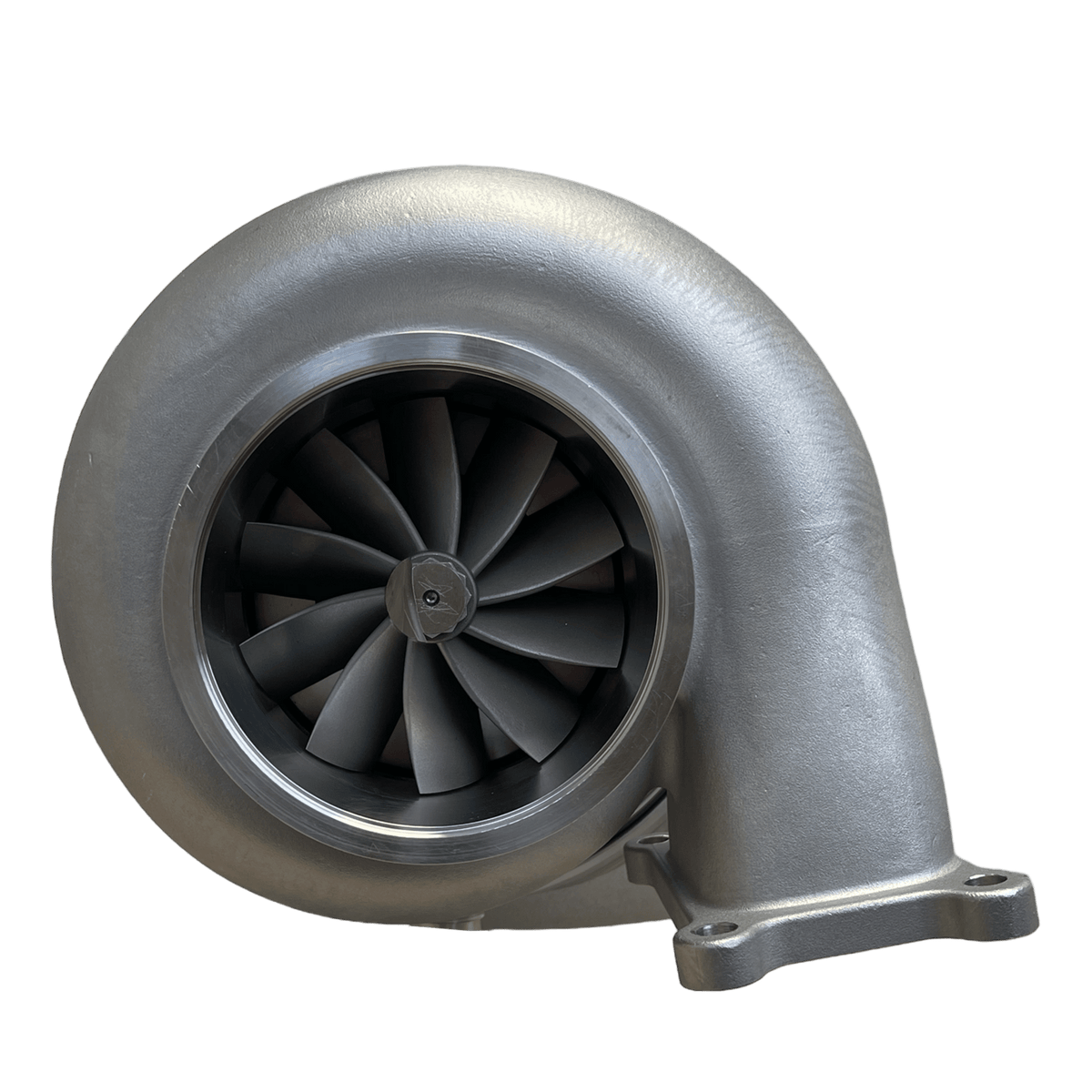

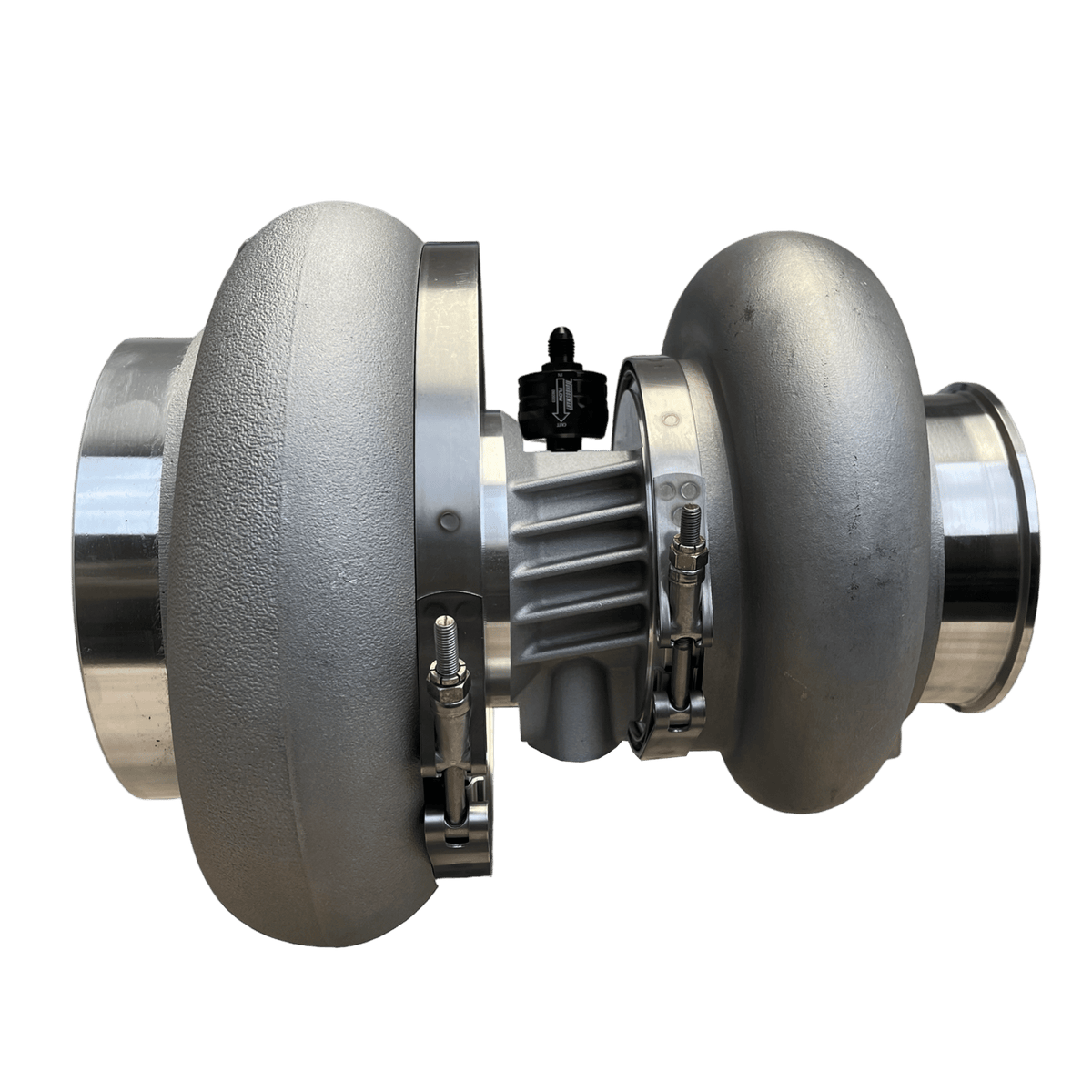

The vendor notes that product photos show an HPT F5 88 turbocharger with a T6 housing as a close representation of the F5 98, so final appearance may vary from the images shown.
