HPT | F3 7880 Mirror Image Turbocharger Package (V-Band 0.96 A/R)

HPT F3 7880 Mirror Image Turbocharger Package – V-Band – 0.96 A/R

Part Number: F3-7880-96VS-MS

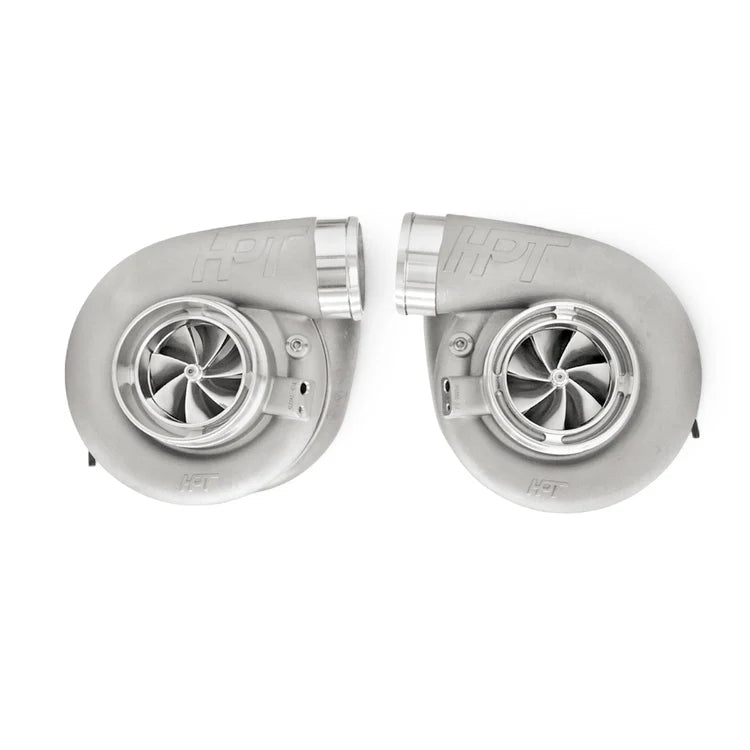

Build a clean, symmetrical and seriously capable twin-turbo system with the HPT F3 7880 Mirror Image Turbocharger Package. Combining one standard-rotation turbocharger with one reverse-rotation unit, this package allows both compressor housings and intake paths to mirror each other for improved engine-bay presentation, simplified fabrication and more balanced turbo placement.

The F3 7880 package is engineered for high-horsepower street, drag racing and competition applications, with the pair capable of supporting up to approximately 2,850 horsepower, depending on the engine combination, fuel, boost pressure and overall system efficiency.

Each turbocharger features a 78mm compressor inducer, 80mm turbine wheel and HPT’s dual-ball-bearing centre section, providing the airflow capability required for demanding high-boost combinations while maintaining responsive performance.

The compact V-band turbine inlet and discharge arrangement simplifies installation and allows greater flexibility when fabricating custom exhaust manifolds, merge pipes and downpipes. A 0.96 A/R turbine housing provides a strong balance between response and high-RPM exhaust flow.

The package also includes the compressor inlet and discharge clamps and flanges required to begin fabricating the intake and charge-pipe system, along with -10AN oil-drain fittings for both turbochargers.

Features & Benefits

• Complete mirror-image twin-turbocharger package
• Includes standard-rotation and reverse-rotation turbochargers
• Supports up to approximately 2,850 horsepower as a pair
• 78mm compressor inducer for substantial airflow capability
• Dual-ball-bearing centre sections
• Symmetrical compressor housing layout
• Cleaner and more professional engine-bay presentation
• Simplifies fabrication of balanced twin-turbo intake plumbing
• V-band turbine inlet and discharge connections
• 0.96 A/R turbine housings balance response and top-end flow
• Suitable for high-boost and high-horsepower race applications
• Supplied with compressor inlet and discharge hardware
• Includes -10AN oil-drain fittings

Technical Specifications

• Turbocharger Series: HPT F3
• Turbocharger Size: 7880
• Package Configuration: Mirror Image Twin Turbo
• Quantity: Two Turbochargers
• Rotation: One Standard Rotation and One Reverse Rotation
• Combined Power Capability: Up to Approximately 2,850 HP
• Compressor Wheel Inducer: 78.00mm
• Compressor Wheel Exducer: 104.24mm
• Compressor Inlet: 4"
• Compressor Discharge: 3"
• Turbine Wheel Inducer: 87.30mm
• Turbine Wheel Exducer: 80.00mm
• Turbine Inlet: 3" V-Band
• Turbine Discharge: 3.5" V-Band
• Turbine Housing A/R: 0.96
• Bearing System: Dual Ball Bearing
• Oil Drain Connection: -10AN

What’s Included

• 1 × HPT F3 7880 standard-rotation turbocharger
• 1 × HPT F3 7880 reverse-rotation turbocharger
• 2 × Compressor inlet clamps
• 2 × Compressor inlet flanges for 3" piping
• 2 × Compressor discharge clamps
• 2 × Compressor discharge flanges for 3.5" piping
• 2 × -10AN oil-drain fittings

Applications

• High-horsepower twin-turbo engine combinations
• Drag racing vehicles
• Competition street cars
• Pro Street and radial racing builds
• V8, six-cylinder and custom race-engine applications
• Petrol, ethanol and methanol-fuelled combinations
• Custom-fabricated turbo systems requiring a symmetrical layout

Important Application Notes

The advertised horsepower capability is a general maximum rating for the turbocharger pair. Actual supported power will depend on engine displacement, fuel type, boost pressure, exhaust backpressure, intercooling, tuning and overall system efficiency.

This is a universal motorsport turbocharger package and requires custom exhaust manifolds, oil supply and drain plumbing, charge piping, wastegates and supporting hardware. Professional installation and tuning are recommended.

Why Choose an HPT Mirror Image Package?

A conventional twin-turbo installation uses two turbochargers rotating in the same direction, often resulting in mismatched compressor housing positions and uneven pipe routing. HPT’s mirror-image arrangement uses opposing compressor-wheel rotation to create a balanced layout on each side of the engine.

The result is a cleaner installation, more consistent intake routing and a professional appearance without sacrificing airflow or performance capability.
